If you have ever looked at the back of a speaker, seen “4 ohms” or “8 ohms,” and thought, “Cool, but how do I actually check that without summoning the ghost of an electrical engineer?” welcome. You are in exactly the right place.
Measuring speaker impedance sounds like one of those jobs that requires a lab coat, a clipboard, and a suspiciously expensive machine. In reality, you can get a very useful estimate with an ordinary multimeter and about five minutes of patience. The trick is knowing what you are really measuring, what the numbers mean, and when a speaker is waving a tiny red flag instead of behaving like a decent piece of audio gear.
In this guide, you will learn how to measure speaker impedance the practical way, how to interpret the reading, why your meter probably will not show the exact number printed on the speaker, and how wiring changes the total load your amplifier sees. We will also cover common mistakes, troubleshooting tips, and real-world experiences that make the whole topic much less mysterious and a lot more useful.
What Speaker Impedance Actually Means
Speaker impedance is the electrical load a speaker presents to an amplifier. It is measured in ohms, and common nominal ratings include 4, 6, 8, and 16 ohms. The word nominal matters here. It means the printed number is not a fixed, constant resistance like you would get from a basic resistor in a school science kit.
A speaker handles an alternating audio signal, not a simple direct current. Because of that, its impedance changes with frequency. It may rise at resonance, dip lower in certain ranges, and climb again elsewhere. In other words, a speaker is not a stubborn brick wall with one number stamped on it. It is more like a moving target that still tries to be helpful by wearing a name tag.
That is why a speaker labeled 8 ohms usually does not measure exactly 8.0 ohms on a digital multimeter. Your meter reads DC resistance, often called DCR or Re, and that value is typically lower than the nominal impedance. So when people say they are “measuring speaker impedance” with a multimeter, what they are really doing is measuring DC resistance and using it to estimate the speaker’s nominal impedance.
Can You Measure True Speaker Impedance with a Multimeter?
Not exactly. A multimeter is great for checking resistance, spotting an open voice coil, or confirming whether a “mystery speaker” is probably 4 ohms, 8 ohms, or 16 ohms. It is not the right tool for plotting a full impedance curve across frequency.

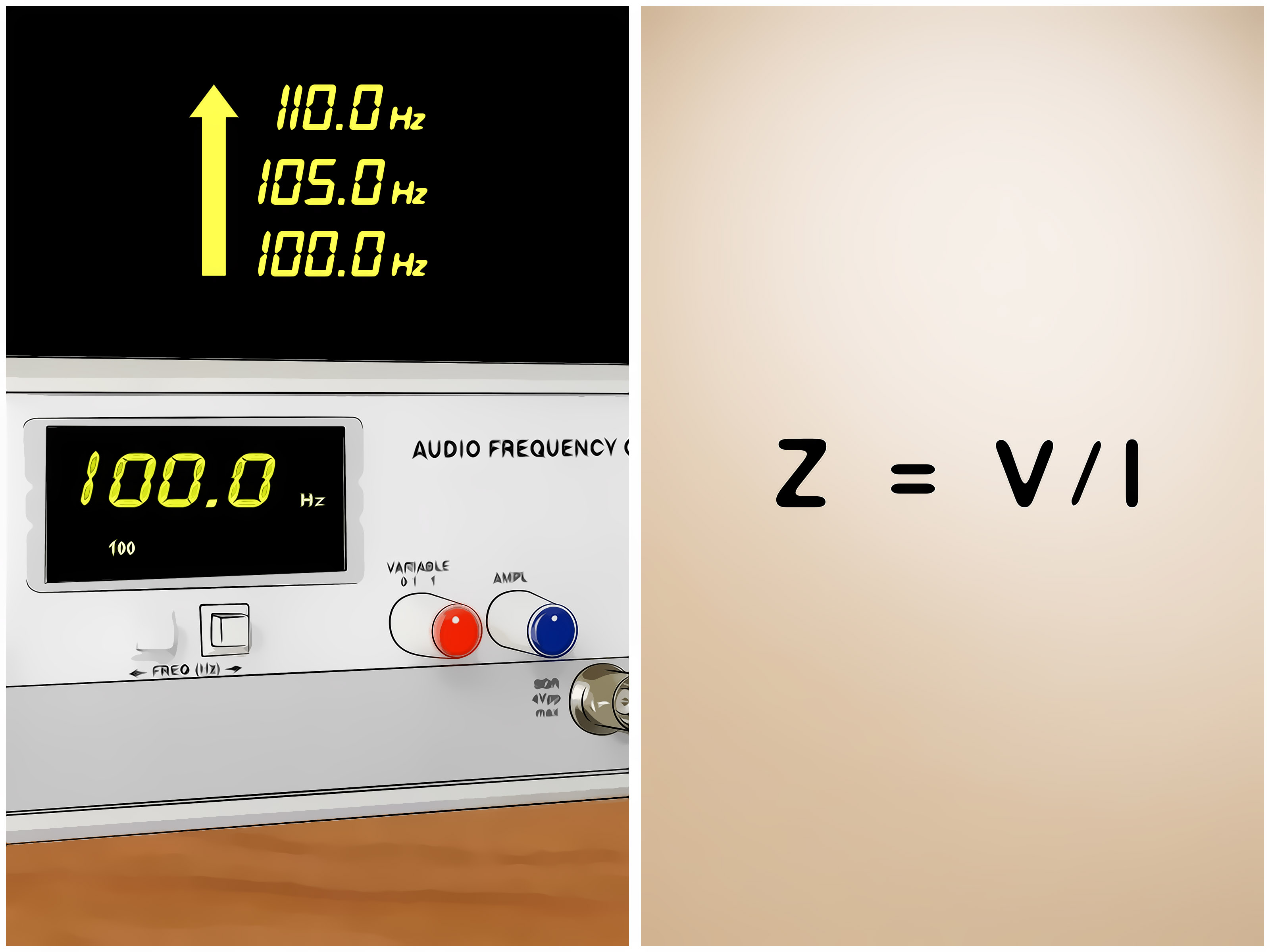

If you want the true impedance behavior of a driver, including resonance peaks and minimum dips, you need specialized test gear such as an impedance analyzer, an LCR-style measurement setup, or a dedicated loudspeaker testing system. That is what speaker designers and serious DIY builders use when they want the full story instead of the movie trailer.
Still, for everyday troubleshooting, buying used speakers, matching drivers, checking a cabinet, or verifying wiring, a multimeter is absolutely the practical starting point.
Tools You Need
- A digital multimeter
- A passive speaker or speaker driver
- Access to the speaker terminals
- Optional: pen and paper, because your memory may be excellent until it suddenly is not
This method is for passive speakers or disconnected drivers. Do not treat powered speakers, amplifiers, or AC mains connections like they are part of the same friendly little test. Measure only at the passive speaker terminals or directly across a disconnected driver.
How to Measure Speaker Impedance Step by Step
Step 1: Turn Everything Off
Before measuring anything, power down the system completely. Disconnect the speaker from the amplifier or receiver. This is not the moment for bravery. Resistance measurements are meant to be taken with the circuit unpowered.
Step 2: Isolate the Speaker if Possible
If you are measuring a loose driver, great life is easy. If you are measuring a speaker inside a cabinet, try to isolate it from the rest of the crossover network when practical. The more directly you can measure the driver itself, the cleaner and more reliable the reading will be.
If you measure through a crossover or a complex cabinet network, the reading can still be useful, but it may not tell the full truth. And audio gear, like people on social media, sometimes tells only a carefully edited version of the truth.
Step 3: Set the Multimeter to Ohms
Turn the dial to the resistance setting, usually marked with the omega symbol: Ω. On many meters, this setting shares space with continuity, diode, or capacitance modes, so make sure you are actually in resistance mode.
Step 4: Check Lead Resistance
Touch the test probes together and see what the meter reads. Some meters show a tiny amount of resistance from the leads themselves, often a fraction of an ohm. Better meters have a relative or zero function that lets you subtract that lead resistance for a cleaner reading. This is especially handy when you are working with low-ohm speakers.
Step 5: Touch the Probes to the Speaker Terminals
Place one probe on the positive terminal and the other on the negative terminal. For a basic resistance reading, polarity does not matter. Just make sure you have firm, clean contact.
Wait a second for the number to settle. Some speakers will lock in quickly. Others bounce for a moment before giving you a stable reading. This is normal.
Step 6: Write Down the Reading
Now look at the display and record the number. That number is the DC resistance, not the nominal impedance printed on the label. From there, you can estimate the speaker’s nominal rating.
How to Interpret the Reading
Here is the part that saves people from unnecessary panic.
If your speaker is nominally 4 ohms, you may see something in the neighborhood of about 2 to 3.5 ohms, sometimes a little higher depending on the design. An 8-ohm speaker often reads around 5 to 7 ohms. A 16-ohm speaker may land somewhere around 11 to 14 ohms. Those are not “wrong” readings. They are exactly why nominal impedance and measured resistance are cousins, not twins.
Here is a simple cheat sheet:
- About 2 to 3.5 ohms = usually a 4-ohm speaker
- About 5 to 7 ohms = usually an 8-ohm speaker
- About 11 to 14 ohms = usually a 16-ohm speaker
Examples make this easier:
- A reading of 3.2 ohms usually points to a 4-ohm driver
- A reading of 6.4 ohms usually points to an 8-ohm driver
- A reading of 12.7 ohms usually points to a 16-ohm driver
If the meter reads OL, infinite resistance, or something extremely high, the voice coil may be open. That usually means the driver is blown or disconnected internally. If the reading is extremely low, close to zero, the voice coil may be shorted. Neither result is the kind of surprise anyone enjoys.
Why the Number on the Meter Is Lower Than the Label
This confuses a lot of people the first time they test a speaker. You buy an “8-ohm” woofer, put a meter on it, and the display says 6.1 ohms. Suddenly it feels like the speaker has lied to you.
It has not. At least, not in the evil sense.
The speaker label gives you the nominal impedance, which reflects the average load behavior over the usable frequency range. The multimeter gives you the DC resistance of the voice coil. Since impedance includes more than plain resistance and changes with frequency, the DC reading is normally lower.
That is why manufacturers and measurement systems often list both values in technical specifications. One tells you the general amplifier load category. The other tells you the voice coil’s DC resistance. Both matter, but they are not interchangeable.
How to Measure Total Speaker Load in a Wired System
Sometimes you are not measuring a single speaker. You are trying to figure out what a pair of speakers, a subwoofer setup, or a cabinet full of drivers is presenting to the amplifier. That is where series and parallel wiring come in.
Series Wiring
In series, the impedances add together.
Formula: Ztotal = Z1 + Z2 + Z3 …
Example: two 8-ohm speakers in series = 16 ohms.
Series wiring raises the load seen by the amp. That usually makes life easier for the amplifier, but it can reduce the power delivered to each speaker. It is the electrical equivalent of taking the scenic route: safe, slow, and sometimes not the most exciting.
Parallel Wiring
In parallel, the total impedance goes down.
For identical speakers, the quick shortcut is simple:
Formula: Ztotal = speaker impedance ÷ number of speakers
Example: two 8-ohm speakers in parallel = 4 ohms.
For mixed impedances, use:
Formula: Ztotal = (Z1 × Z2) ÷ (Z1 + Z2)
Example: one 4-ohm speaker and one 8-ohm speaker in parallel = about 2.7 ohms.
That low load can be too much for many home amplifiers, so always compare the final number with the amplifier’s minimum safe load rating. A brave wiring idea is still a bad idea if it turns your amp into a countertop hand warmer.
Common Mistakes to Avoid
Measuring with the Speaker Connected to an Amplifier
Always disconnect the speaker first. Measuring resistance in a live or connected circuit can give false readings and can be unsafe.
Expecting the Meter to Match the Label Exactly
If your 8-ohm speaker reads 6.3 ohms, that is usually normal. Do not declare the speaker broken just because the meter did not say exactly what the sticker said.
Ignoring the Crossover
If you test a full speaker cabinet without isolating the driver, the crossover components can affect what you see. The reading may still help, but it will not be as clean as measuring the driver directly.
Confusing Resistance with Full Impedance
This is the biggest one. A multimeter is giving you a useful estimate, not a complete impedance plot across the frequency spectrum.
When You Need More Than a Multimeter
If you are building a custom crossover, matching drivers precisely, designing a speaker cabinet, or diagnosing strange frequency-dependent behavior, a simple resistance measurement is only the appetizer. You need a dedicated measurement system that can sweep frequency and show the real impedance curve.
That curve reveals resonance peaks, impedance minima, and behavior that a basic multimeter cannot touch. For casual troubleshooting, the meter is enough. For design work, it is just the opening act.
Real-World Experiences Measuring Speaker Impedance
In real-world audio work, measuring speaker impedance often starts with a very ordinary question: “Why does this thing sound wrong?” That question shows up in garages, music rooms, car trunks, rehearsal spaces, thrift stores, and living rooms where someone has inherited a pair of mystery speakers from an uncle who believed labels were optional.
One of the most common experiences is testing an old bookshelf speaker that still plays, but sounds thinner than it should. A quick resistance check across the woofer might show a healthy number in the 5 to 7 ohm range, suggesting it is an 8-ohm driver. Then the tweeter reads open, which explains why cymbals sound like they are hiding behind a blanket. Suddenly the “warm vintage sound” turns out to be “half the speaker is not working.” Humbling, but useful.
Car audio brings its own little circus. Plenty of people buy used subwoofers and discover they have dual voice coils. They measure one pair of terminals, get one value, measure another, get the same value, then wonder why the final wiring load changes depending on how the coils are connected. That is where impedance measurement stops being trivia and starts preventing expensive mistakes. A sub that can be wired to present 2 ohms, 4 ohms, or 8 ohms is not confusing once you measure each coil and map the wiring before connecting it to the amp.
Another classic experience happens with speaker cabinets that contain crossovers. Someone checks the terminals on the back of the cabinet and gets a reading that seems odd. Panic begins. Then they disconnect the woofer and measure the driver directly, and everything makes sense again. The lesson is simple: the cabinet as a system can fool you a little, while the driver itself is much more honest.
Used gear shopping is probably where this skill earns its keep fastest. If you are standing in front of a pair of speakers at a yard sale, thrift shop, or online pickup meetup, a pocket multimeter can save you from buying a cabinet full of disappointment. A reading that looks normal does not guarantee the speaker sounds perfect, but an open or shorted driver can be spotted in seconds. That is a huge advantage when the seller keeps saying, “They worked last time I checked,” which usually means “Please stop asking technical questions.”
There is also a satisfying moment that comes from solving amplifier stress problems. Maybe an amp keeps overheating, shutting down, or sounding strained. Measuring the speaker loads and doing the series-versus-parallel math often reveals the real issue: the amplifier is being asked to drive a load that is lower than it was designed to handle. Once the wiring is corrected, the system behaves, the heat drops, and the amp stops acting like it is training for a marathon.
So yes, measuring speaker impedance may sound like a tiny technical chore, but in practice it is one of those skills that pays off again and again. It helps you identify mystery drivers, confirm nominal ratings, catch bad coils, verify wiring, and protect your amplifier. Not bad for a test that takes less time than arguing in a forum comment section.
Final Thoughts
If you remember only one thing from this guide, make it this: a multimeter does not show the full impedance curve of a speaker, but it does give you a reliable resistance reading that is incredibly useful for estimating nominal impedance and checking speaker health.
That means measuring speaker impedance is not about chasing a perfect label match. It is about understanding what the meter is telling you. A 6.4-ohm reading on an 8-ohm driver is normal. An open circuit is not. A short is not. Two 8-ohm speakers in parallel are not still 8 ohms, no matter how optimistic anyone feels about it.
Once you know how to test, interpret, and apply the numbers, you can troubleshoot speakers with more confidence, match them to amplifiers more safely, and avoid the kind of wiring mistakes that end with smoke, regret, or both. And that, in audio terms, is what we call a pretty good result.
